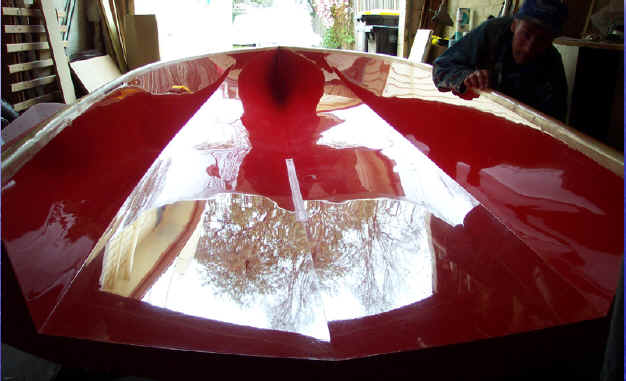

| Mould waxed and polished |
 |

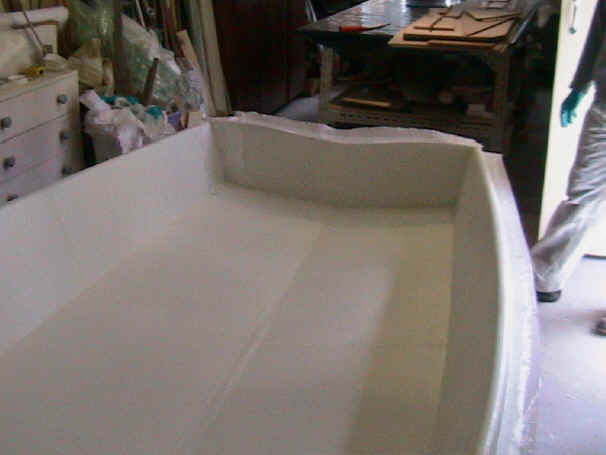

| Undercoat and outer glass layer |
 |

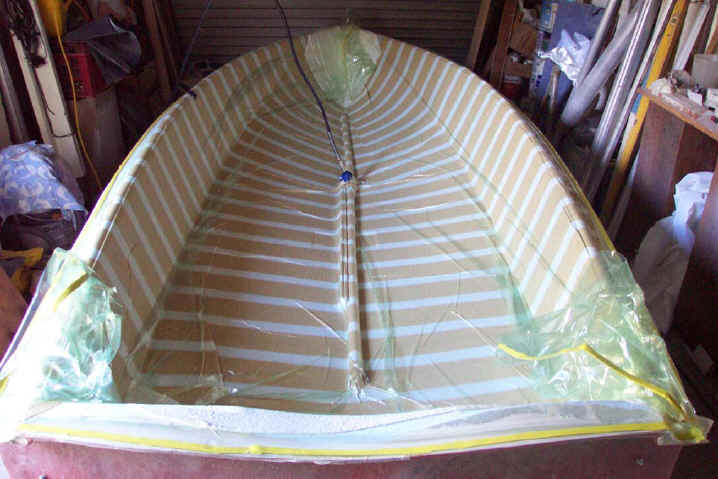

| Vacuum bagging the foam |
 |

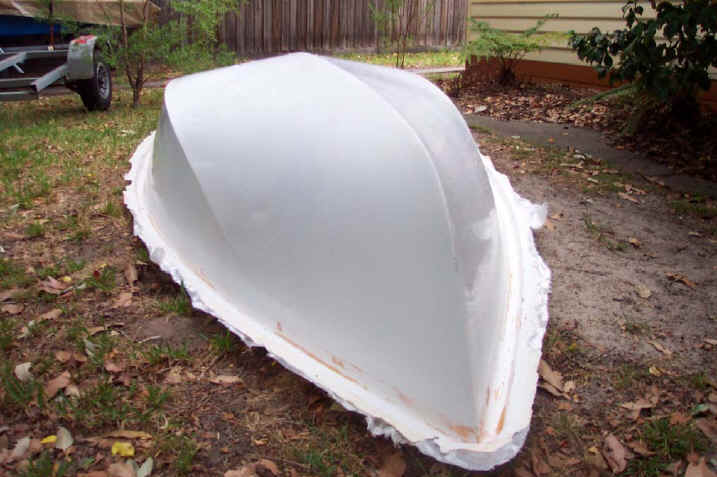

| Hull shell pops out at 20kg with interior laminate complete |
 |

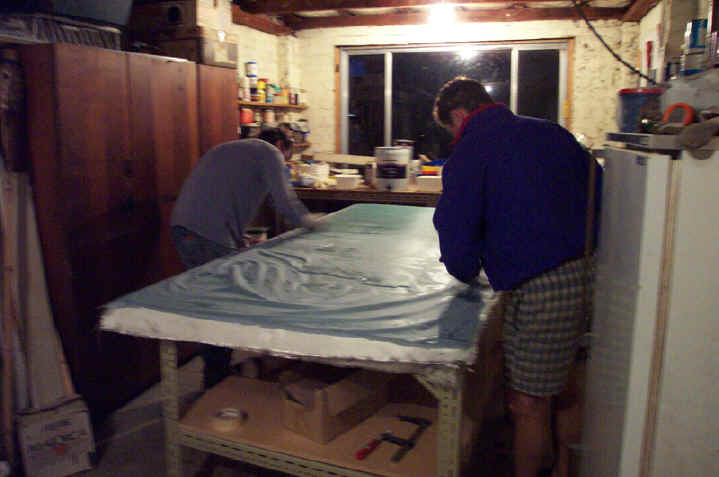

| Flat panels are laminated with glass
and peel ply. These panels are later
cut to shape with an oscillating saw |
 |

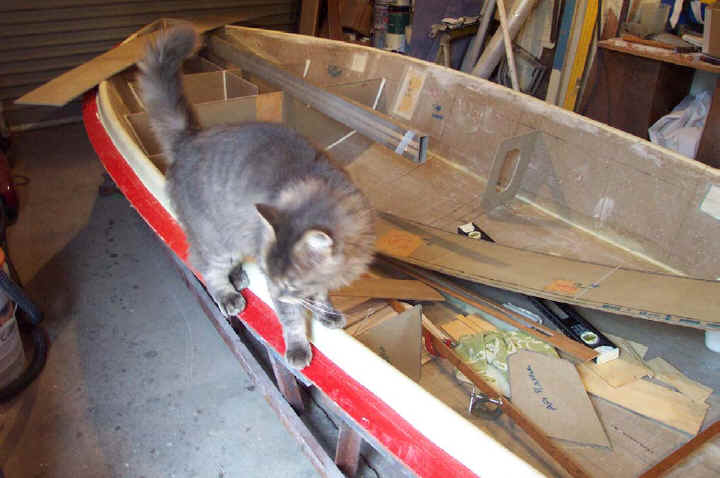

| Foam Sandwich Panels are glued in
place and filleted |
 |

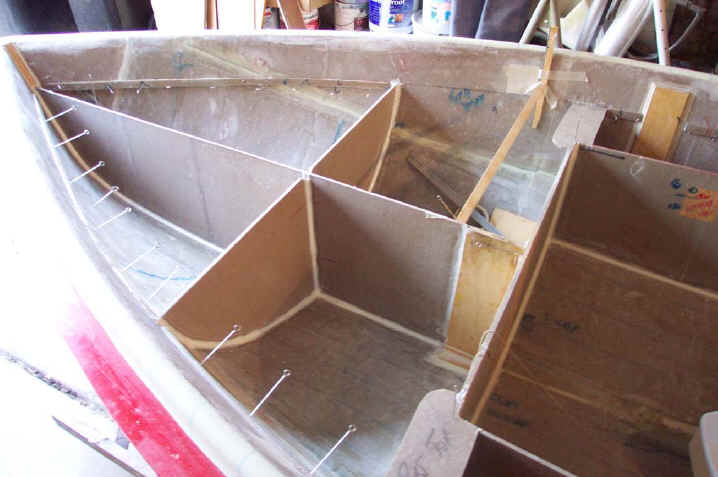

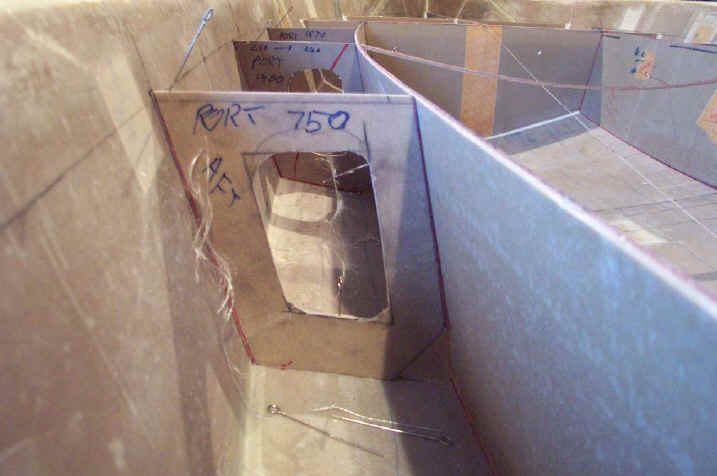

| Pins hold the panels before gluing |
 |
| Plywood blocks are located for
fitting fix points and mast step |
 |

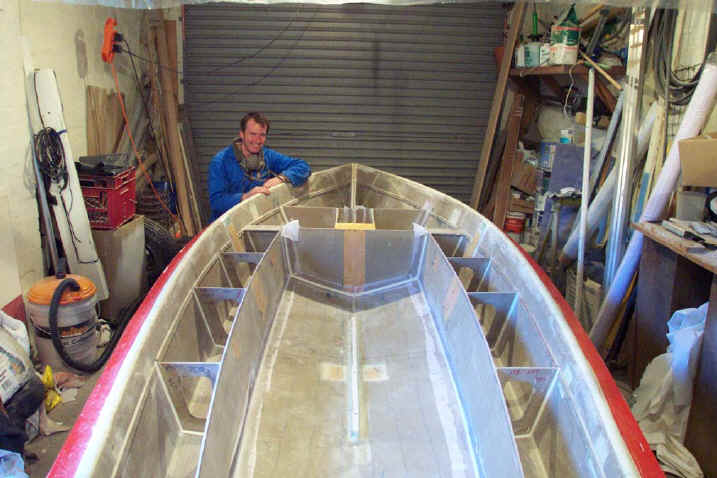

| Almost Ready for the decks |
 |

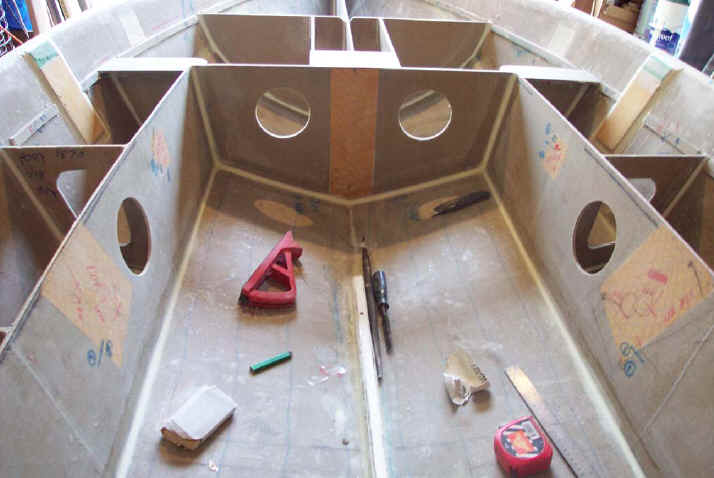

| Ready for the decks |
 |

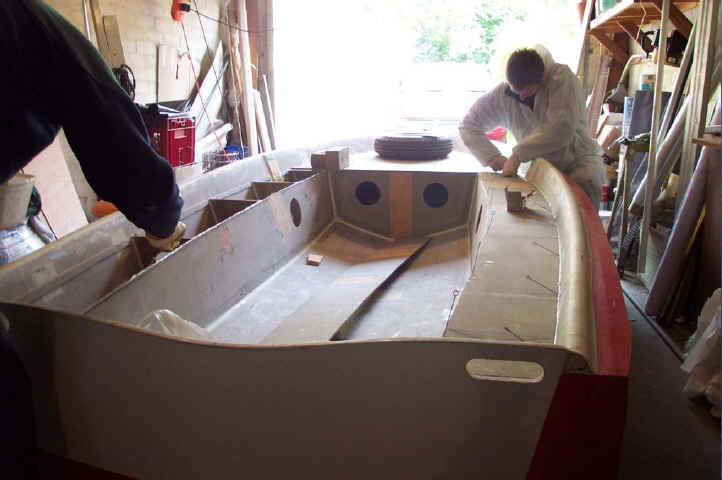

| Gluing the decks down |
 |

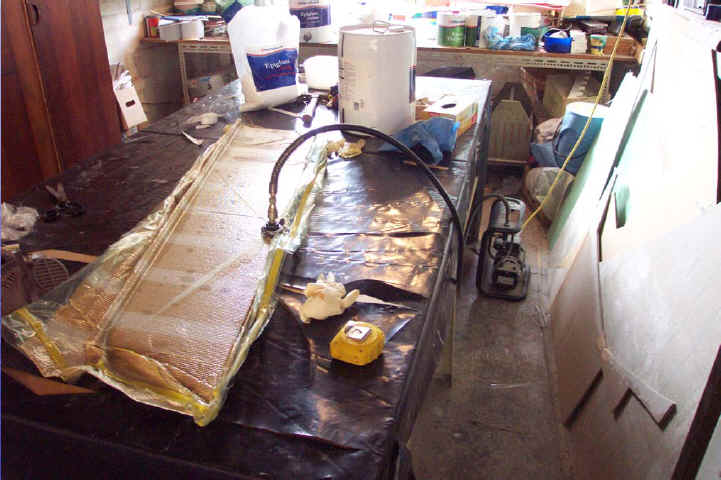

| Bagging the centre case |
 |

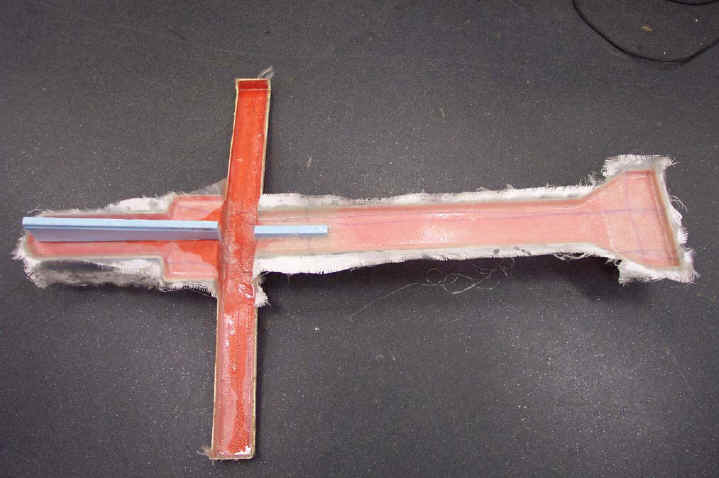

| Building the thwart |
 |

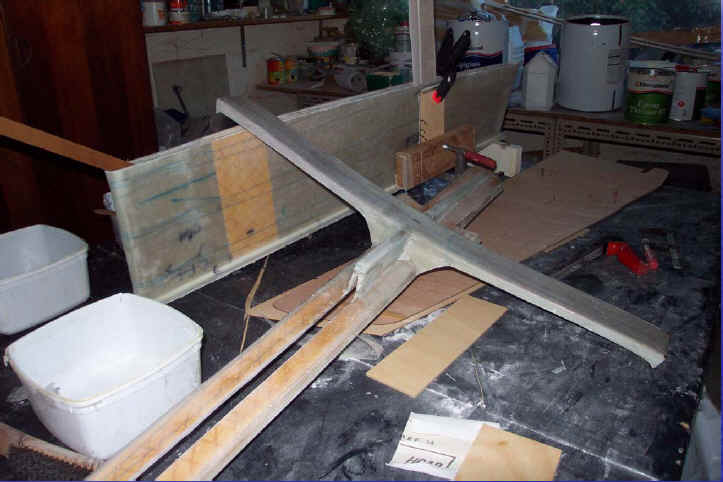

| Thwart and centre case ready |
 |

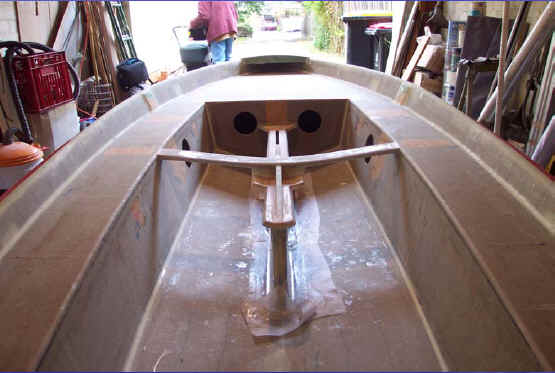

| Glassing the gunnels |
 |

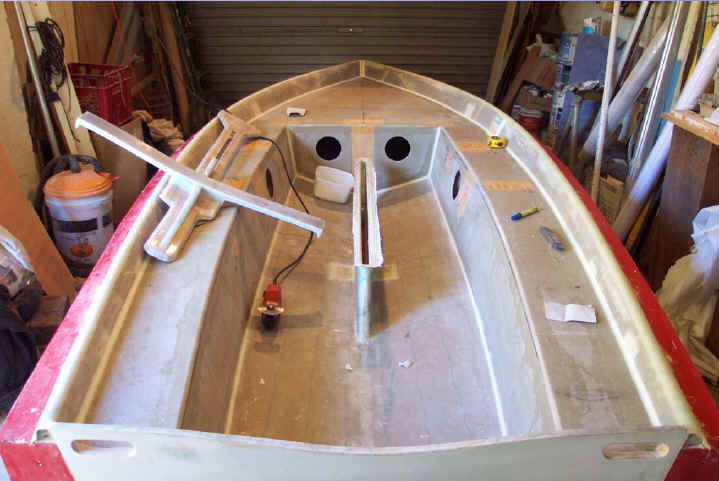

| Centre case in position |
 |

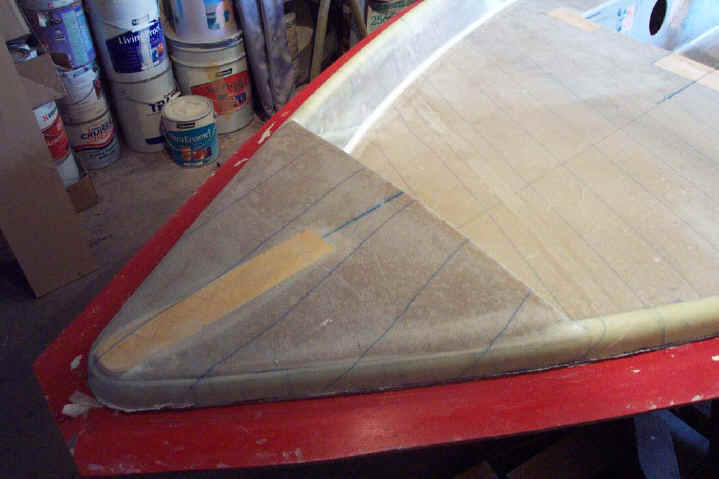

| Bow cover built |
 |

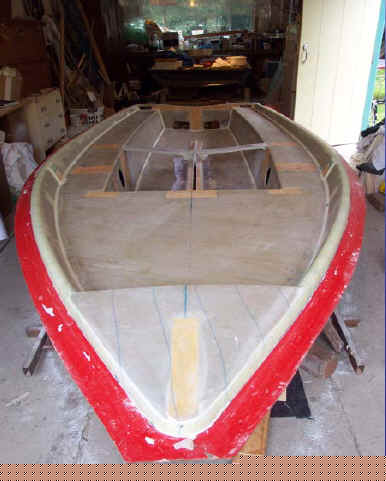

| Thwart in |
 |

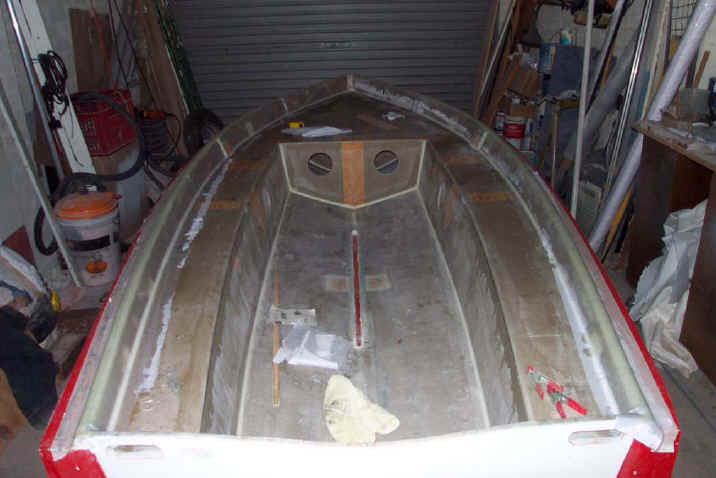

| Gunnels trimmed |
 |

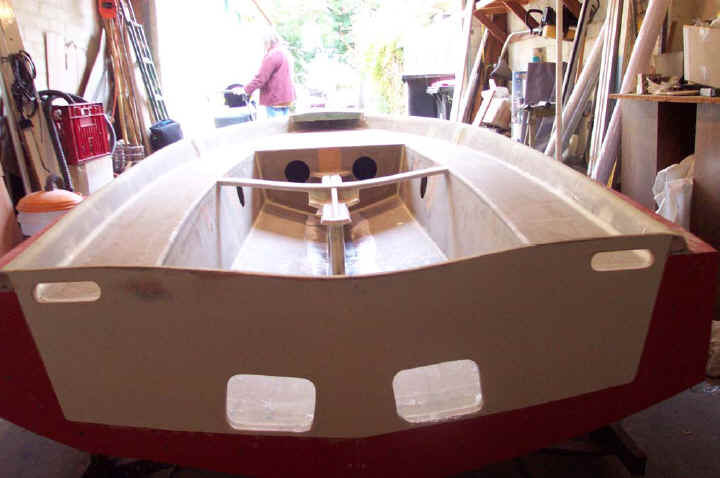

| Scupper holes cut |
 |

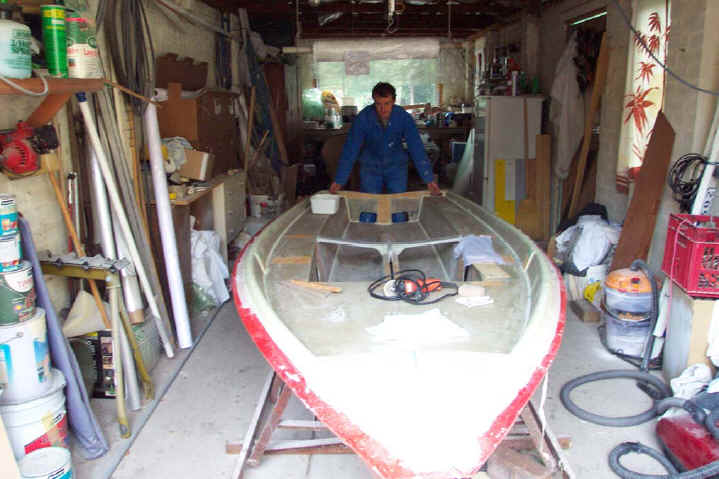

| Weight at birth 41kg |
 |
Ready to take home, fill, fair and
paint, and fit out and rig.
Thanks to all in the Victorian 125 building co-op team.
|
